concrete forming coil bolt for building fasteners
DESCRIPTION:
The coil bolt is used on concrete forming accessories and it is a new products for concrete building fasteners .It workes together with coil cone ,coil insert two strut to strengthen the formwork
There are two kinds of coil bolt head available ,one is hex head with a collar and another one is the hex head without collar
The forging process is :first heated the head ,and then put it in the mould ,then forged up and down direction
The marking on the head is raised letters.
The collar type coil bolt is only exported to Australia market
The hex head without collar is mainly for US market .
Features
- Comes preboxed with adjustment nut already in place near head of bolt to save labor cost for the user
- The head is forged one body and the coil bolt is screw on the coil tie to the concrete when useage
- Head is hot formed and not welded for better consistency and the highest strength in the market
- Available in several different lengths in stock
- Coil Thread is self cleaning and ideal for dirty jobsites or use in concrete formworK
- Our products Include:
-
Construction Industry
-
Concrete Forming Accessories
-
Waterstop Products
-
Scaffolding & Shoring Components
-
Rebar Splicing
-
Transportation Industry
-
Heavy and Medium Duty Truck O.E.M.'s
-
Light & Heavy Duty Trailer O.E.M.'s
-
Heavy Duty Truck and Trailer Aftermark
SIZE:
| | D Size | L Length | AC Across Flats | Safe Working Load lbs |
| NTS01 | 1/2" | 300mm | 3/4" | 9,000 |
| NTS02 | 1/2" | 350mm | 3/4" | 9,000 |
| NTS03 | 1/2" | 18" | 3/4" | 9,000 |
| NTS04 | 1/2" | 24" | 3/4" | 9,000 |
| NTS05 | 1/2" | 30" | 3/4" | 9,000 |
Comments: SWL provides a safety factor of apporoximately 2 to 1.
Here are the detailed pictures of the coil bolt:
The coil thread and head shape in detail view:

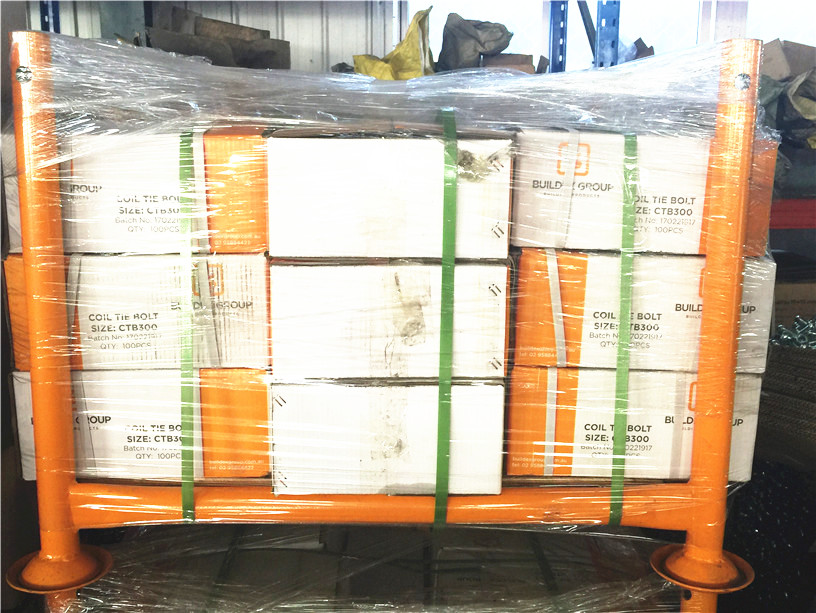

Packing pictures: first 100pcs put in the plastic bag and then put in carton box .all boxes on steel pallet
HOW TO USE THE COIL BOLT?
Our products are playing important roles behind the scenes, such as underground, inside concrete and in supporting roof beams.
We believe that providing the high-performance and reliable products will protect human lives and livelihoods in the event of disasters and accidents.
As the needs for safety and security grow, New Taosheng will continue to develop the high value products to contribute to the society.
